Casio Organizer Retrofit (Hackaday)

What it is

A 1995 Casio SF-5580 Business Organizer (the bigger sibling of the era’s “digital diary” boomer-pocket gadgets) retrofitted with modern guts: a Raspberry Pi Zero driving a 480×800 color LCD slotted into the original screen aperture, and a Raspberry Pi Pico repurposing the original 82-key membrane keyboard as a USB HID input. The visible result is a vintage organizer with a functioning Linux brain inside; the photographed UI shown on the LCD is a calendar/scheduler grid in deeply nostalgic monospace, evoking the original Casio “ILLUMINATOR” amber-backlight aesthetic.

The build is canonical “modernize the shell, keep the silhouette” territory — a useful aesthetic anchor for KN-86 because it answers the question “what does function-key-driven retro look like when the shell is real?”

Aesthetic / design inspiration for KN-86

• Function-key-driven layout idiom. The original Casio SF-5580 carries a top row of labeled function keys (CALENDAR, SCHEDULE, ADDRESS, MEMO, CALC) — each one a domain. The on-screen UI maps to the key labels: hitting CALENDAR brings up a calendar; hitting SCHEDULE brings up the schedule grid. KN-86’s 14 function keys + 1 TERM key (Canonical Hardware Spec, ADR-0016) are doing exactly this pattern at the firmware/cart level: each key is a domain or a context-dependent action. The Casio retrofit is the strongest single visual-reference for “what function-key-driven UI looks like when it’s done right.”
• Calendar / scheduler grid as a layout primitive. The retrofitted LCD shows a calendar grid that reads as instantly legible at handheld arm’s-length. Useful precedent for any KN-86 cart that needs to render dated content (mission deadlines, dispatch logs, transmission history) — a calendar-style grid on the 80×25 main display is a real option, not a hokey one.
• “ILLUMINATOR” amber-backlight vibe. Casio’s amber-on-dark LCDs (the EL-backlit era) are a direct color-temperature analogue to KN-86’s #E6A020 amber. The retrofit acknowledges this by leaning into amber-toned UI choices on the modern LCD. KN-86 is in the same color family, by design.
• Retrofit-vintage-shell aesthetic. The build keeps the original Casio’s deeply ’90s plastic shell (textured charcoal, chunky brand stamp, real hinge) and lets the modern guts disappear inside. KN-86 is not a retrofit (the Pelican shell is intentional, not vintage), but the attitude — “the silhouette is the affordance; the brain is invisible” — is shared. Worth keeping in mind that KN-86’s external silhouette should communicate the device before the screen does.
• The retrofit reads as personal-history, not period-cosplay. The Casio looks loved-in, not curated. Marketing implication: KN-86 should photograph well on a desk with coffee rings, not in a vacuum-cleaned product still life.

Downloaded image(s)

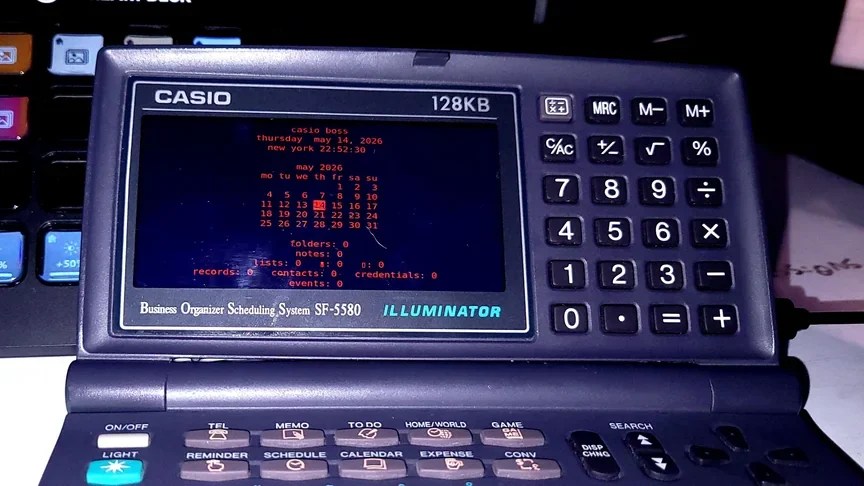

The shot used in the Hackaday writeup. Shows the original clamshell organizer open, original 82-key membrane keyboard intact, and the retrofitted color LCD displaying a calendar grid in the original Casio function-key vocabulary.

Notes / open questions for KN-86

• Function-key-as-domain is already the KN-86 input model. Worth citing this build in any documentation discussion of why 14 function keys (rather than a more general keyboard layout) — it’s a proven retro-handheld idiom, not a quirk.
• Calendar / scheduler grid is a worth-prototyping cart surface. Specifically: a mission-deadline calendar surface for the dispatch / mission-board cart, rendered as a Casio-style monthly grid in amber on the 80×25 display. Park as a screen-design exploration.
• The retrofit’s “calendar+schedule+memo+calc” verb taxonomy is a small reminder that the universal-verb-set conversation (raised in zork.md) has a 1995-organizer lineage too. The Casio function keys are essentially typed-once-then-everywhere verbs.
• Photographic style for KN-86 launch materials should bias toward lived-in over staged. This is a strong directive emerging from both the Casio retrofit and the Cyberdeck Cafe lifestyle posts.
